LEPLC100 light controller
Features
★ High reliability & long working life warranty ★ Friendly human-machine interface
★ Controllable in three phase line ★ Scenes system programmable
★ Both PWM dimming and switch ON/OFF function ★ Low cost PLC solution
|
Model (Note 1) |
LEPLC100 |
||
|
System Information |
|||
|
176~264VAC |
Line Frequency (Hz) |
50/60 |
|
|
Line Baud rate (bps) |
100 |
Working Temperature (℃) |
-30 ~ 50 |
|
Receiving Sensitivity (mV) |
≤1 |
Working Humidity |
10%~90% |
|
Out-of-band Rejection (dB) |
≥60 |
Storage Temperature (℃) |
10 ~85 |
|
Bandwidth (Hz) |
≤10k |
Working Life (Warranty) |
3 years |
|
PLC Node (LEPLC100-N) Parameters |
|||
|
Max. Wattage (W) |
210 |
Switch Initial State |
ON |
|
Wattage Consumption (W) |
<2 |
Dimming Interface |
Negative PWM |
|
Transmission Distance (m) |
1.5k (Note 2) |
Electrical Connection (Note 3) |
3-pin water proof connector V+:Red V-:Black DIM: Yellow
|
|
Phase Connection |
Single phase/ 3-pahse |
||
|
IP Rating |
IP65 |
||
|
Size (mm*mm*mm) |
131*68*50 |
||
|
PLC User Panel (LEPLC100-P) Parameters |
|||
|
Input Voltage (V) |
176~264VAC |
Line Frequency (Hz) |
50/60 |
|
Size (mm*mm*mm) |
107*88*59 |
Installation Mode |
DIN C45 guide |
|
PLC Bridge (LEPLC100-B) Parameters (Note 4) |
|||
|
Input Voltage (V) |
176~264VAC |
Line Frequency (Hz) |
50/60 |
|
Size (mm*mm*mm) |
159*88*59 |
Installation Mode |
DIN C45 guide |
|
Note 1: Contact for more information about the PLC control system (Profile A/ Profile B). This system is only sold with LightEngin light products, including but not restricted to following products: 2080 series street light; 2180, 2181, 2182, 2183 series high bay light; 3180, 3181, 3182, 3183 series tunnel light Note 2: Depending on installation field environment Note 3: No hot plug for dimming connector. Note 4: Optional The system is in some complex, contact us for more information. |
|||

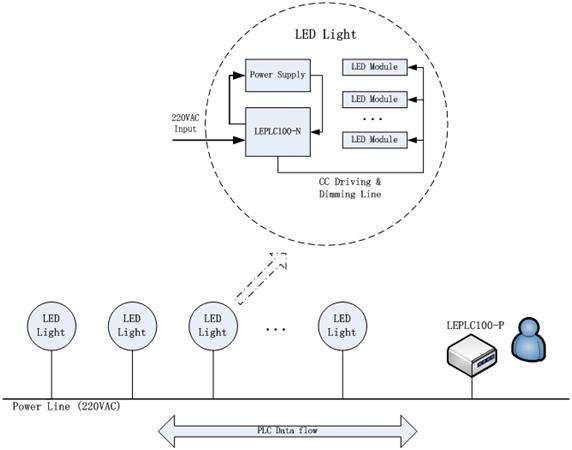

1. Normal Connection
