LEZB100 Zigbee controller
★ High reliability & long working life warranty ★ Friendly human-machine interface
★ Support net up to 500 nodes ★ Smart update function
★ Automatic networking High ★ High expansibility
Model (Note 1) |
LEZB100 |
||
System Information |
|||
Working Frequency (Hz) |
2.4GHz |
Working Temperature (℃) |
-30 ~ 50 |
Receive sensitivity (dBm) |
-98 |
Working Humidity |
10%~90% |
Max. Transmission Distance (m) |
150 |
Storage Temperature (℃) |
10 ~85 |
Max. Nodes in a Net |
500 |
Working Life (Warranty) |
3 years |
Zigbee Node (LEZB100-N-X) (Note 2) |
|||
Input Voltage (V) |
DC 48/ AC 220 (type A/B) |
Switch Initial State |
- / ON (type A/B) |
Max. Wattage (W) |
210 |
Dimming Interface |
Negative PWM |
Wattage Consumption (W) |
<2 |
Electrical Connection (Note 3) |
3-pin water-proof connector V+: Red V-: Black DIM: ellow
|
IP Rating |
IP20/ IP65 (type A/B) |
||
Size (mm*mm*mm) |
97*50*32/ 131*68*50 (type A/B) |
||
Zigbee Controller (LEZB100-C-Y) (Note 3,4) |
|||
Input Voltage (V) |
DC 9V |
Interface |
RS232/ RJ45 (type A/B) |
Input Current (mA) |
500 |
Size (mm*mm*mm) |
160*105*32 |
Zigbee Panel (LEZB100-P) |
|||
Input Voltage (V) |
DC 9V |
Interface |
Mini USB |
Size (mm*mm*mm) |
159*88*59 |
Installation Mode |
DIN C45 guide |
Zigbee Sensor (LEZB100-S-Z) (Note 5) |
|||
Power Supply |
AAA Battery*2 |
Size (mm*mm*mm) |
85*85*30 |
Note 1: Contact for more information about the Zigbee smart lighting system. This system is only sold with LightEngin light products, including mosy of our LED lights.Zigbee smart lighting system include Zigbee Node, Zigbee Controller and corresponding software Note 2: X is the order number for Zigbee node type: A for compact type, B for complete type Note 3: Y is the order number for Zigbee controller interface type: A for RS232, B for RJ45 Note 4: GPRS, WIFI module for extension available, please contact for more information Note 5: Z is the order number for Zigbee Sensor type: A for light sensor, B for motion sensor |

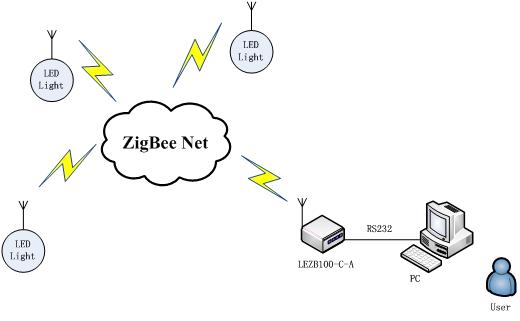

1. Normal Connection

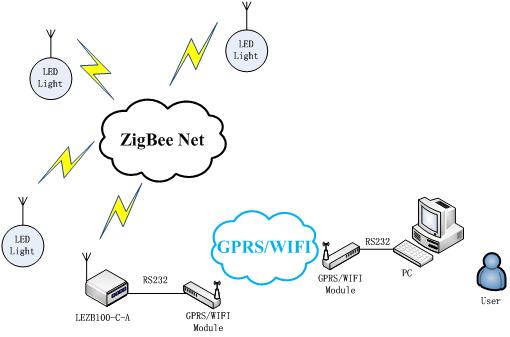

2. Connection with GPRS/WIFI Module

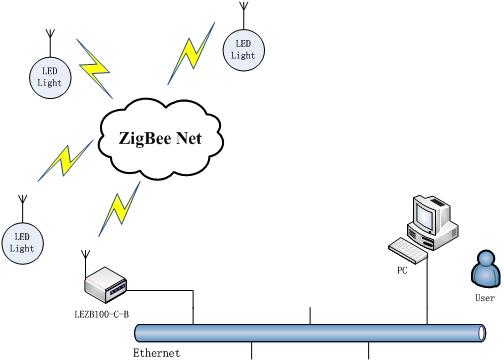

3. Connect with Internet

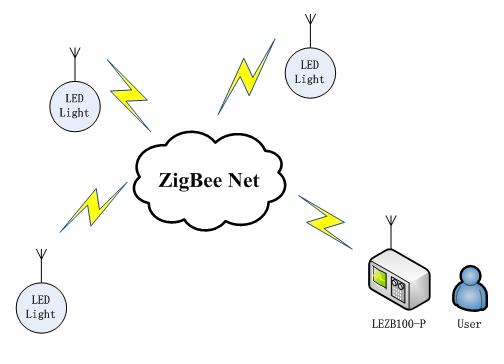

4. Local control by Zigbee Panel

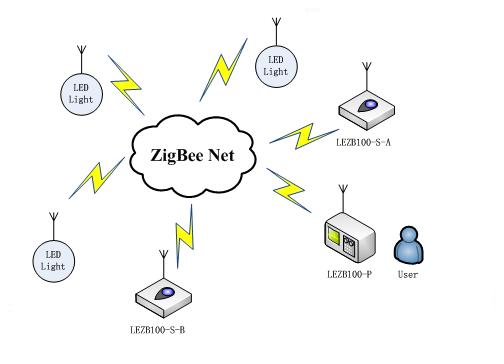

5. Connect with Zigbee Sensor
