DALI Lighting system
---LEDALI100 Series |
 |
| Features |
High reliability & long working life warranty
IEC60929 Compatible
Small size
|
Friendly human-machine interface
0~10V dimming output
Easy for installation
|
| Specification |
|
Model (Note 1,2)
|
LEDALI100
|
|
DALI Bus Driver (LEDALI100-D) Parameters
|
|
Input Voltage (V)
|
200~250VAC
|
Working Temperature (℃)
|
-20 ~ 65
|
|
Frequency Range (Hz)
|
50/60Hz
|
Connection Mode
|
Screw connection
|
|
Output Channels
|
2
|
Installation Mode
|
Guide
|
|
Output Voltage (V)
|
18VDC
|
Net weight (g)
|
300
|
|
Output Current (mA)
|
250
|
IP Rating
|
IP20
|
|
Output Power (W)
|
4.5
|
Size (mm*mm*mm)
|
100*90*60
|
|
DALI Dimming Signal Converter (LEDALI100-V) Parameters
|
|
Input Voltage (V)
|
100~240VAC
|
Dimming Level
|
255
|
|
Frequency Range (Hz)
|
50/60Hz
|
Dimming Range
|
0%~100%
|
|
Input Power (W)
|
<=2
|
Working Temperature (℃)
|
-20~75
|
|
Input Signal
|
DALI (IEC60929)
|
Working Humidity
|
10%~90%
|
|
Output Signal
|
0~10V
|
Size (mm*mm*mm)
|
131*44*23
|
|
DALI Controller (LEDALI100-C) Parameters (Note 3)
|
|
Input Voltage
|
DALI Bus
|
Working Temperature (℃)
|
0~80
|
|
Input Signal
|
3-channel switch signal
|
Storage Temperature(℃)
|
-20~55
|
|
Output Signal
|
DALI (IEC60929)
|
Net weight (g)
|
15
|
|
Input Current (mA)
|
<6mA
|
Size (mm*mm*mm)
|
32*12*20
|
|
Note 1:
Contact for more information about the DALI lighting control system. This system is only sold with LightEngin light products, including but not restricted to following products:
2080 series street light; 2180, 2181, 2182, 2183 series high bay light; 3180, 3181, 3182, 3183 series tunnel light
Note 2:
A power supply with 0~10V dimming interface is needed, but not included in the system, contact for more information
Note 3:
Including a switch panel
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

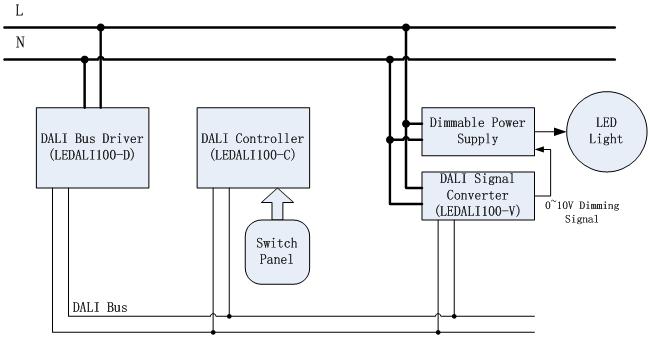

| System Schematic--Block diagram |
--- |
--- |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.DALI Bus Driver (LEDALI100-D)
DALI Bus Driver is used to supply the DALI bus with 18V/250mA voltage source. It can provide necessary protective functions like under voltage protection, over load protection and short circuit protection.
|
2. DALI Dimming Signal Converter (LEDALI100-V)
DALI dimming signal converter is used to convert the DALI digit command to 1~10V dimming signal. It is water-proof, easy to install.
It is compatible with standard IEC60929.
|
3. DALI Controller (LEDALI100-C)
DALI controller is used to control devices in a DALI bus. It can realize broadcast switch/dimming and group switch/dimming with a 3-button switch panel. By standard, 16 groups can be used for addressing.
|
|
|
|
|
Contact us for more information in detail.
