LELUR13380(CREE)
| LightEngin series LED STREET LIGHTs use high quality LED chips, modularized LED stripes design, and unique optical system, which assure the maximum luminous efficiency and best heat radiation, greatly extend its working life, keeping maintenance cost extremely low, and easily support future technology upgrading. | |||||||||

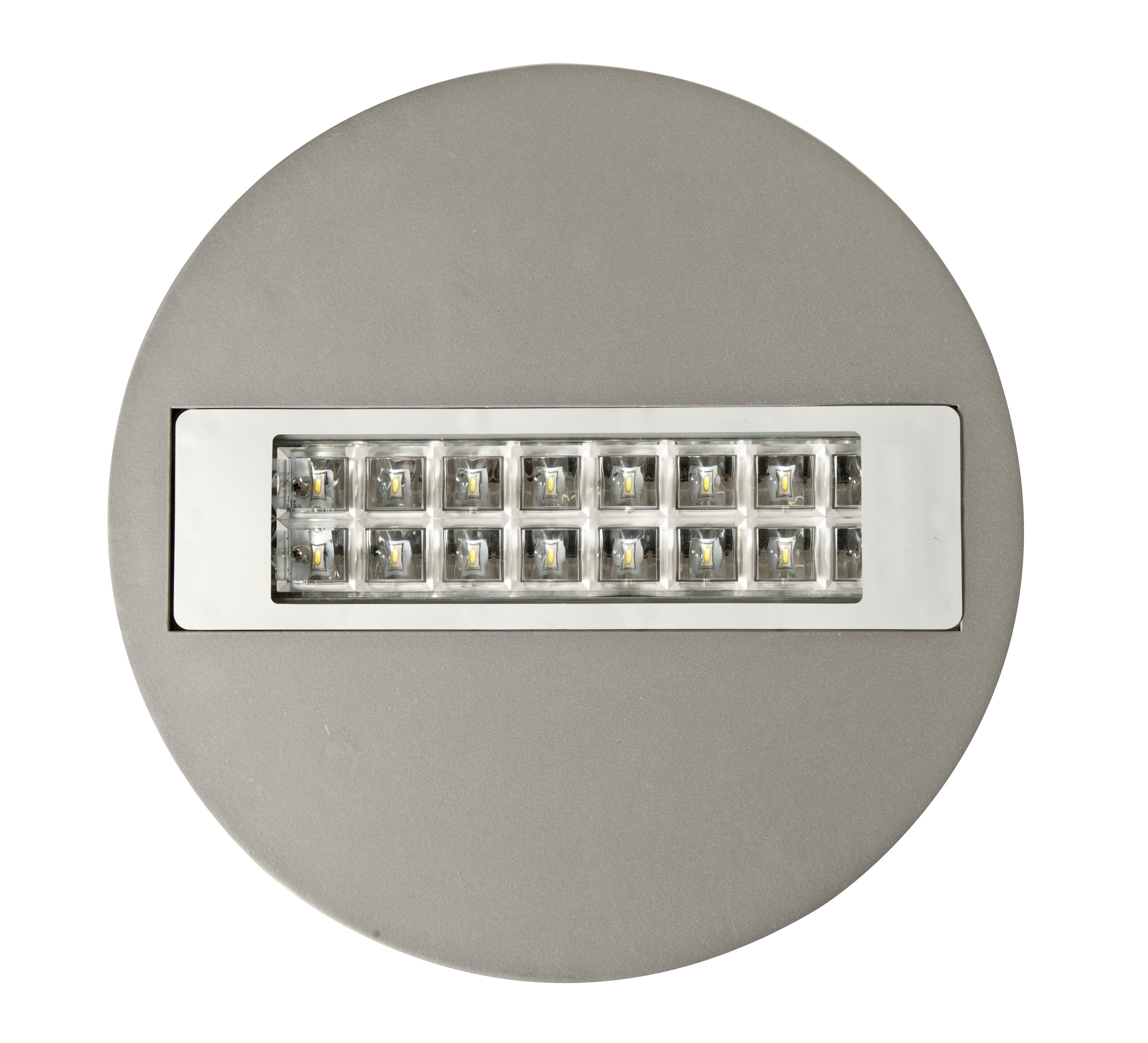

| IMAGE | MODEL | LELUR13380(CREE) | |||||||
 |
Input Voltage (V) | 90~132/ 176~264 | |||||||
| Frequency Range (Hz) | 47-63 | ||||||||
| Power Factor | >0.9 | ||||||||
| Total Harmonic Distortion | <15% | ||||||||
| Power Efficiency | >86% | ||||||||
| Input Power (W) | 30 | ||||||||
| Output Luminous Flux (lm) | 2500 | ||||||||
| Colour Temperature (℃) | 3000~6500K | ||||||||
| Colour Rendering Index (CRI) | Ra> 70 | ||||||||
| Light Distribution | Rectangular light shape | ||||||||
| LED Junction Temperature (℃) | ≤85 ( Ta=25℃) | ||||||||
| Working Environment (℃) | -30 – 50 | ||||||||
| Working Humidity | 10%-90% | ||||||||
| Storage Temperature (℃) | 10 – 85 | ||||||||
| Light Body | Aluminum alloy construct | ||||||||
| IP Rating | IP65 | ||||||||
| Lamp Size (mm) | R175*H55 | ||||||||
| Net/Gross Weight (kg) | 4.5/5Kg | ||||||||

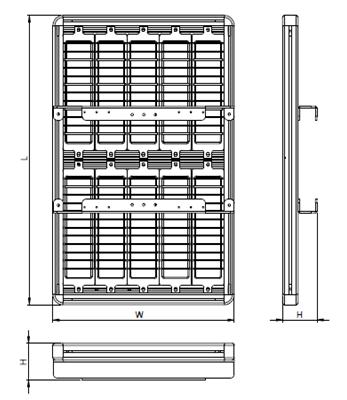

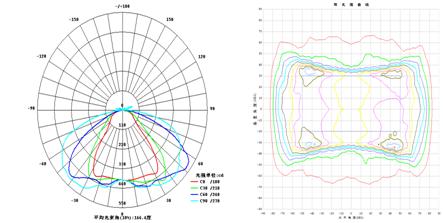

| LAMP DIMENSION: | LIGHT DISTRIBUTION & ILLUMINANCE DATA: | ||||||||
 |
 |
||||||||
| INSTALLATION GUIDE: | LUX SIMULATION FOR VARIANT INSTALLATION HEIGHT: | ||||||||
| 1. Three wires: Brown - Live wire Blue - Neutral wire Green/Yellow - Earth wire 2. Earth wire must be connected to ground firmly. 3. Insert pole of 60MM diameter and tighten the bolt firmly. 4. Adjust the bolt in case pole whose diameter>60MM is used. 5. Input voltage shall be not over AC 264V,otherwise light may be damaged. 6. Ensure power cut off when trying to replace LED module. |
 |
h | a | b | Average lux (lx) |
Lux under light (lx) |
|||
| 4m | 14m | 6m | 24.8 | 46.4 | |||||
| 6m | 20m | 8m | 11.7 | 20.8 | |||||
| 8m | 26m | 10m | 6.8 | 11.7 | |||||
| 10m | 33m | 13m | 4.2 | 7.5 | |||||
| 12m | 40m | 16m | 2.9 | 5.3 | |||||
